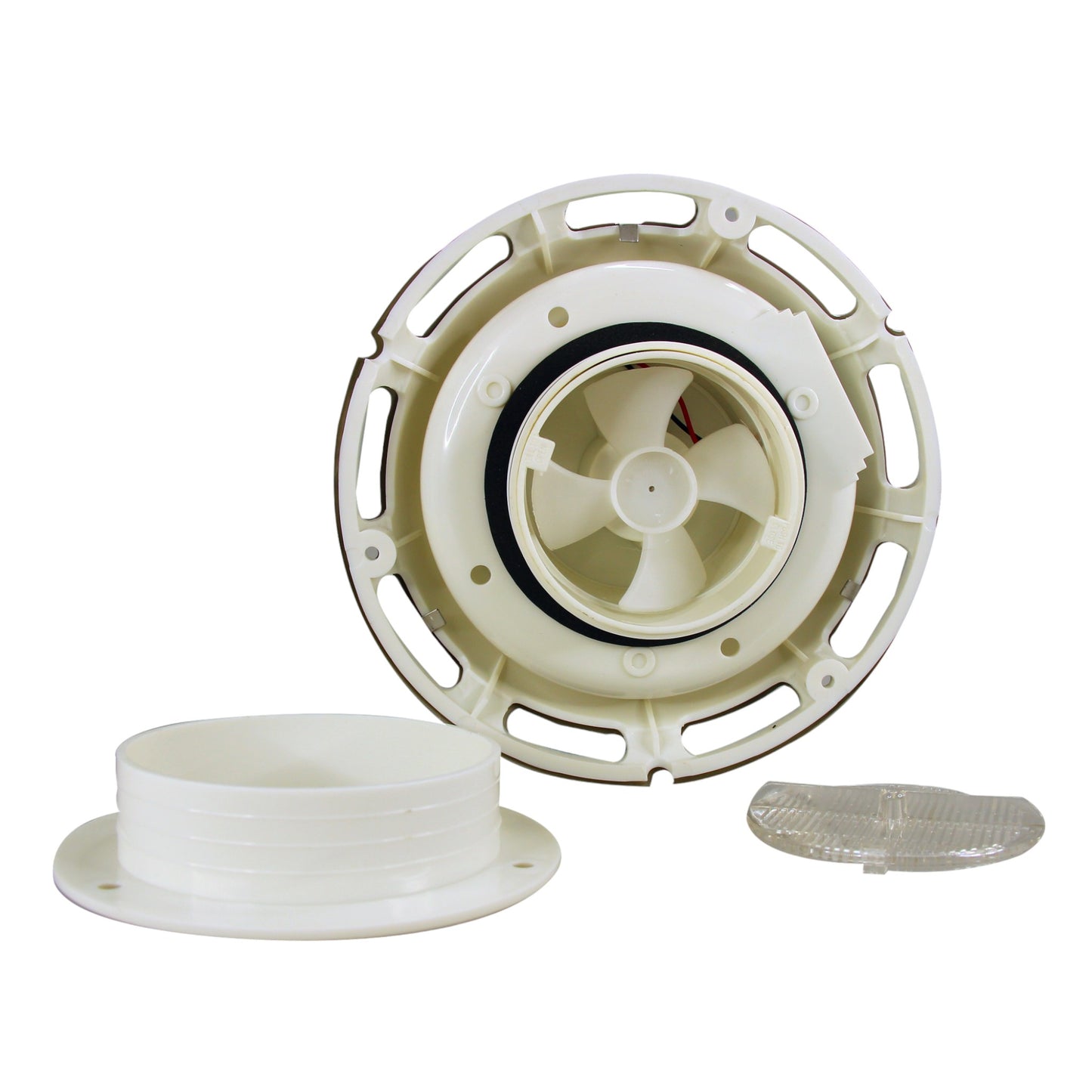

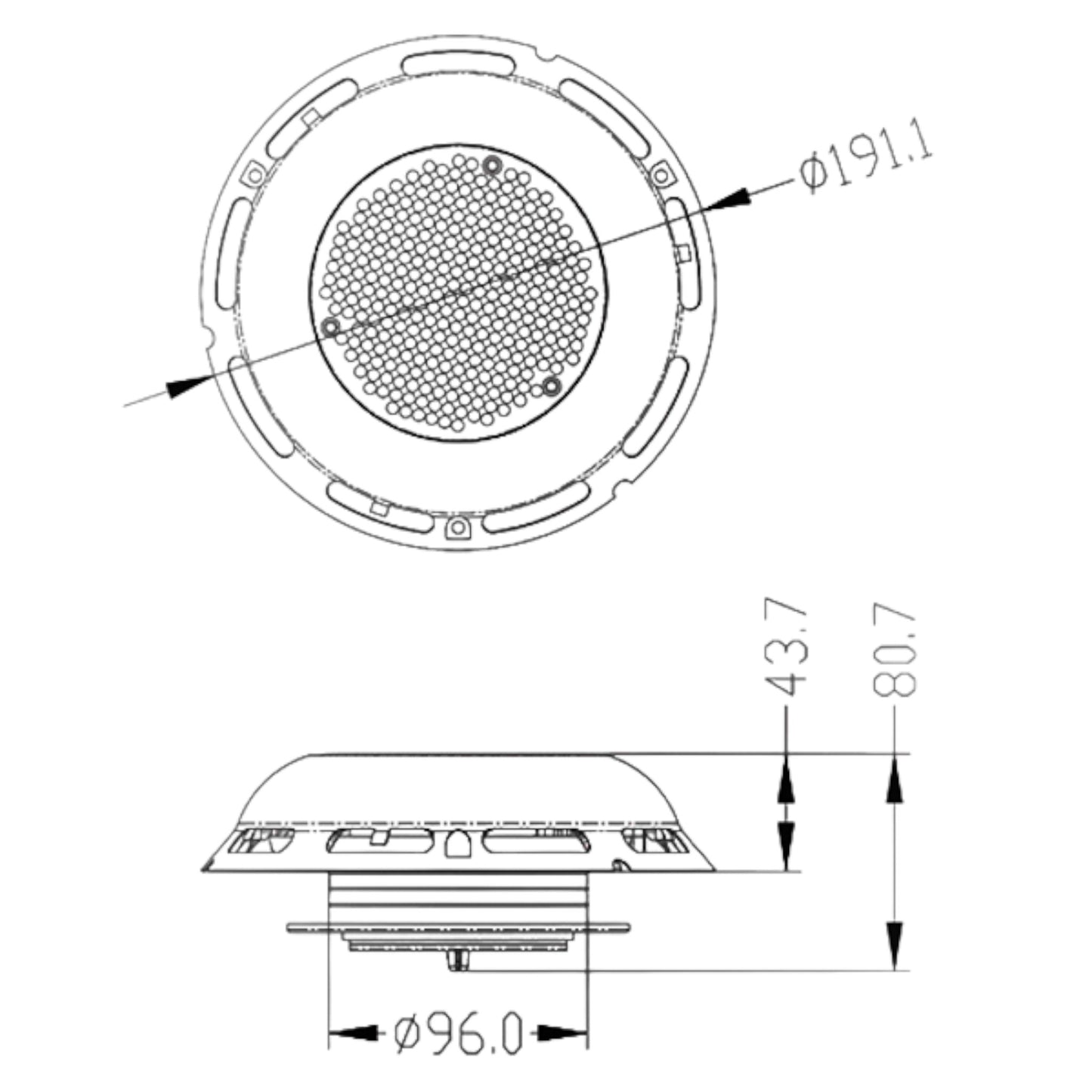

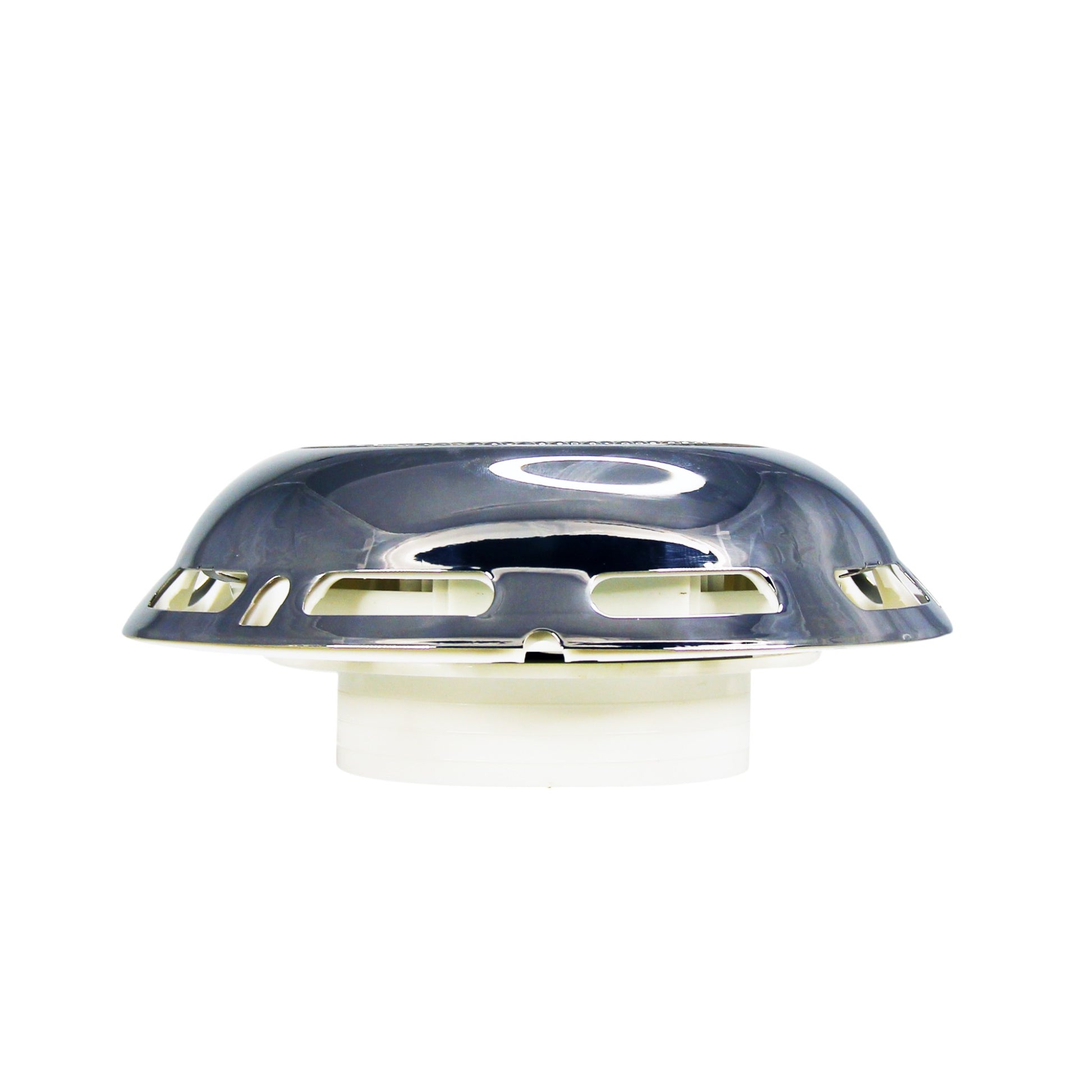

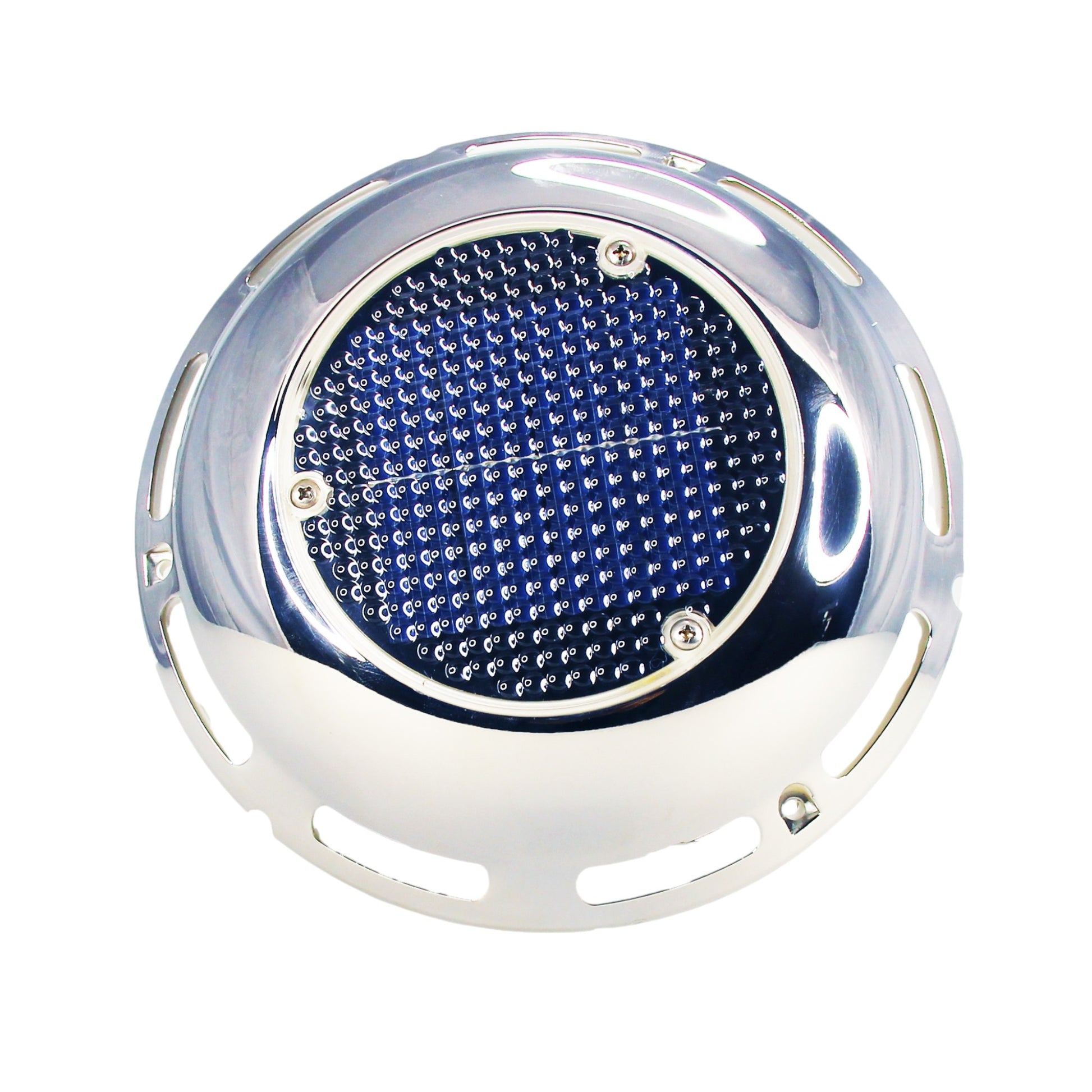

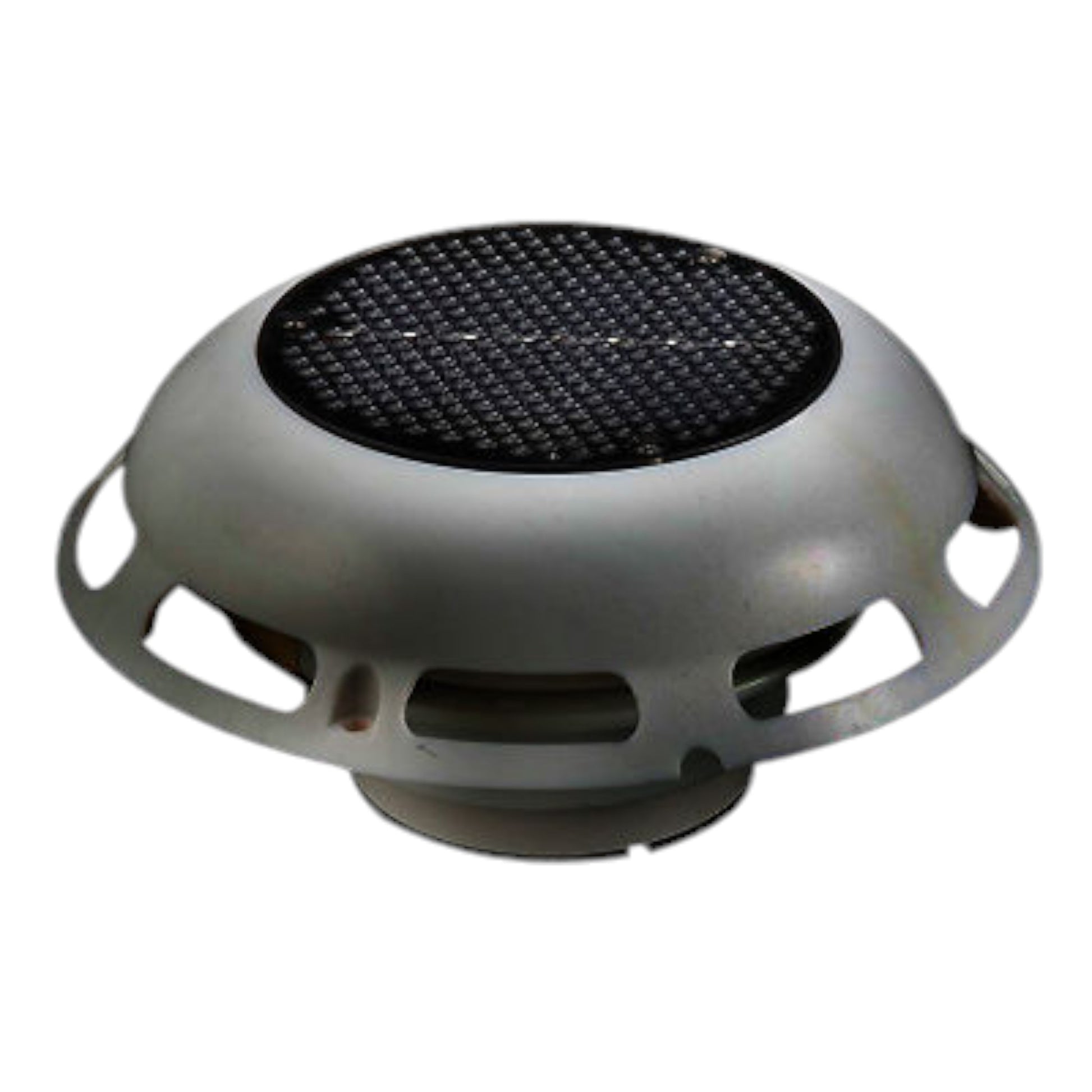

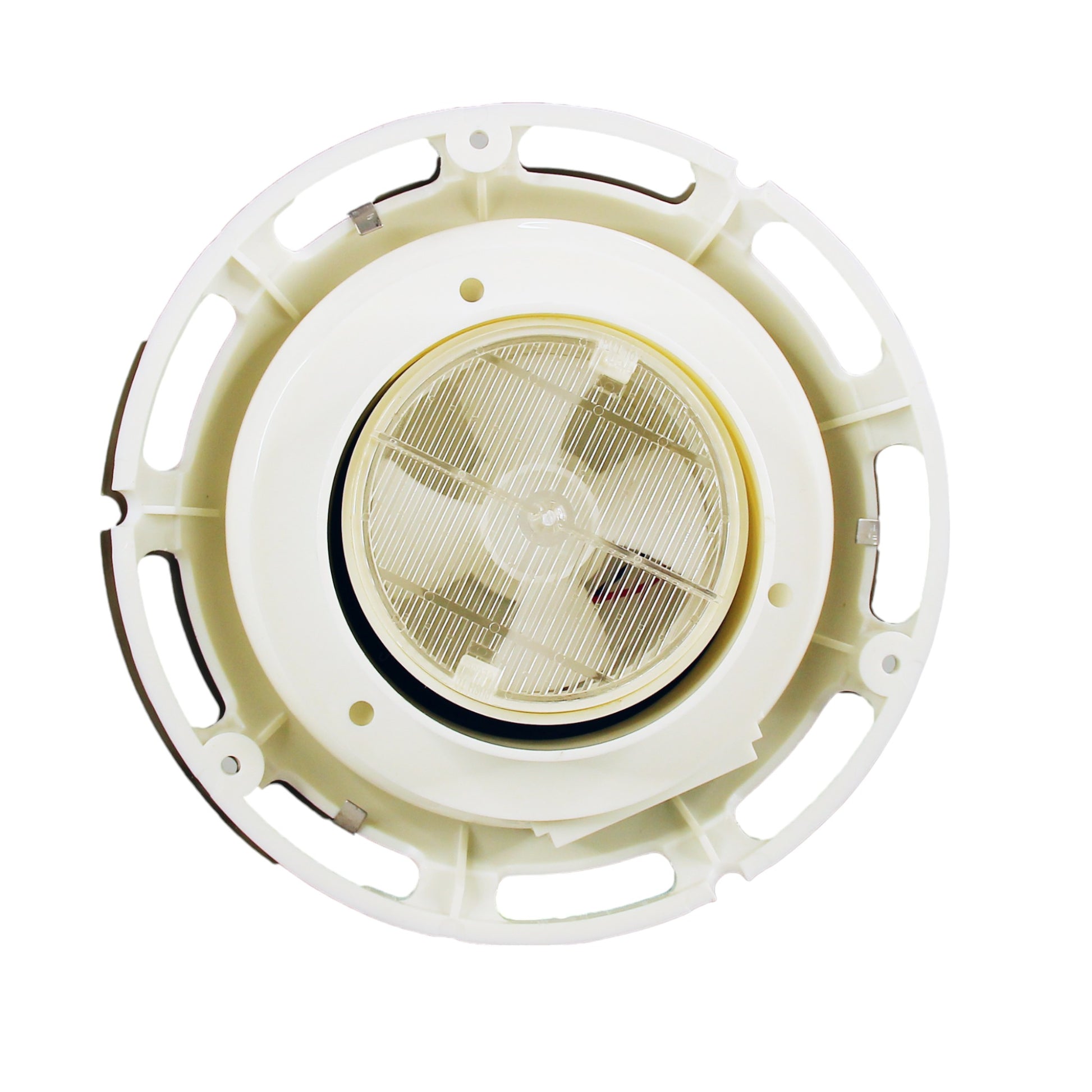

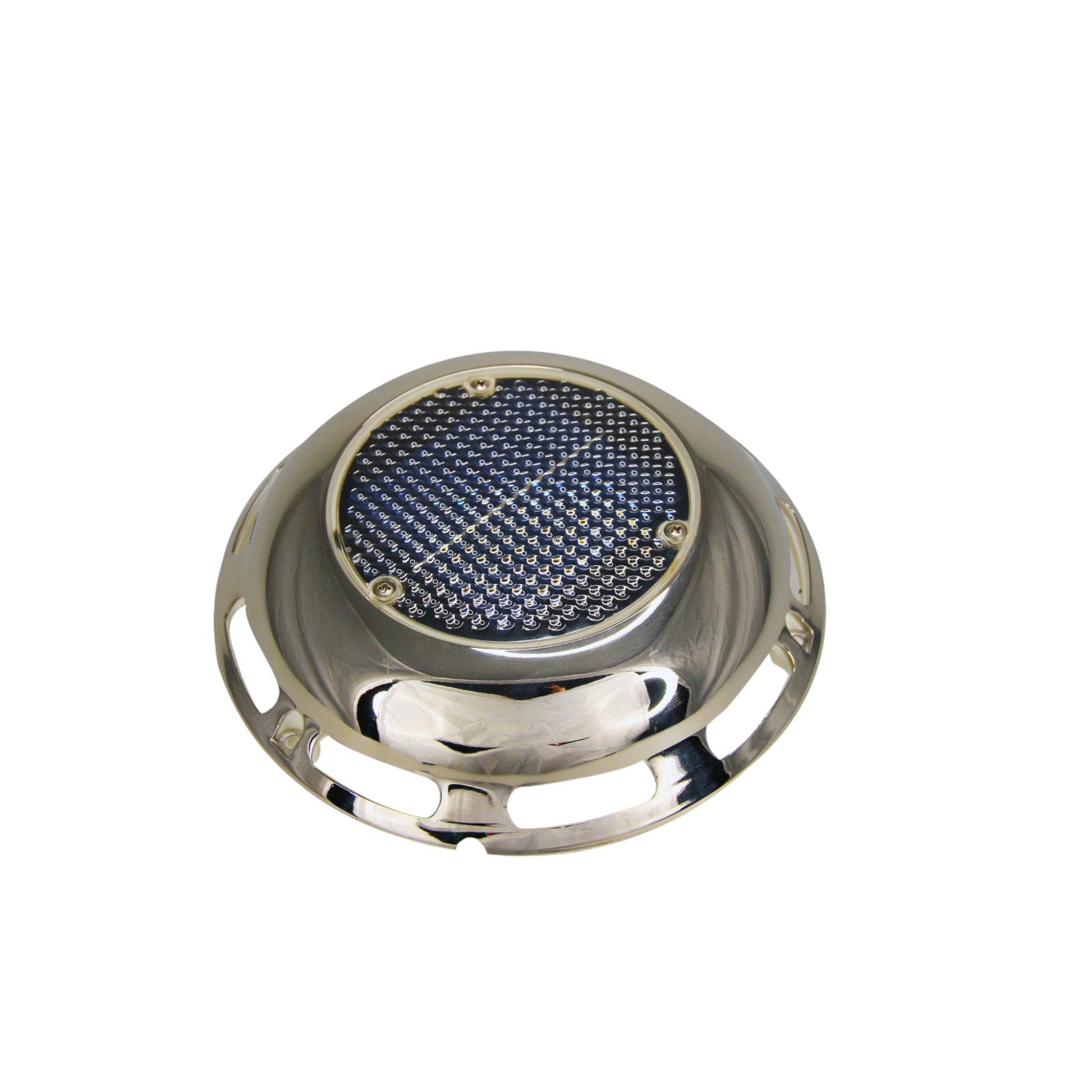

Measuring 7 1/2" dia. and 3" H, this water resistant 3" solar powered ventilation comes with rechargeable battery and switch. Two blades (exhaust and intake) are provided with each vent. It moves up to 700 cu.ft./hr of air during the day on solar power while charging a rechargeable battery to run at night.
Ventilation can run on battery for 24 hours at full charge. It is constructed with high impact stainless steel cover and stainless-steel screws are included. No wiring is required during installation and it comes with a ON/OFF switch.
Cutout size 3 3/4" Installation If you are unsure how to fit the solar vent yourself, consult a professional installation expert.
Do not remove any screws that are preinstalled from the vent as this is not needed for installation. The Foam gasket ring is optional for installation and is recommended for glass surfaces. On other surfaces, a waterproof sealant is needed and is not included in the ventilator package. Remove the plastic from the underside of the vent.(this ring will be used at your last step to push the vent into the ceiling) Apply sealant between the guidelines on the underside of the vent. Place the product though the hole from the outside. Use wood or metal screws on the surface of the vent on the designated holes. Use weatherproof screws and it is advisable to use the sealant around the screw holes. Push the fixing plastic ring up the barrel from the inside Your ventilator is ready to use!!!
