Pactrade Marine Boat Bilge Alarm Pump Switch Aluminum Plate 3.25" by 2.5" LED Indicators

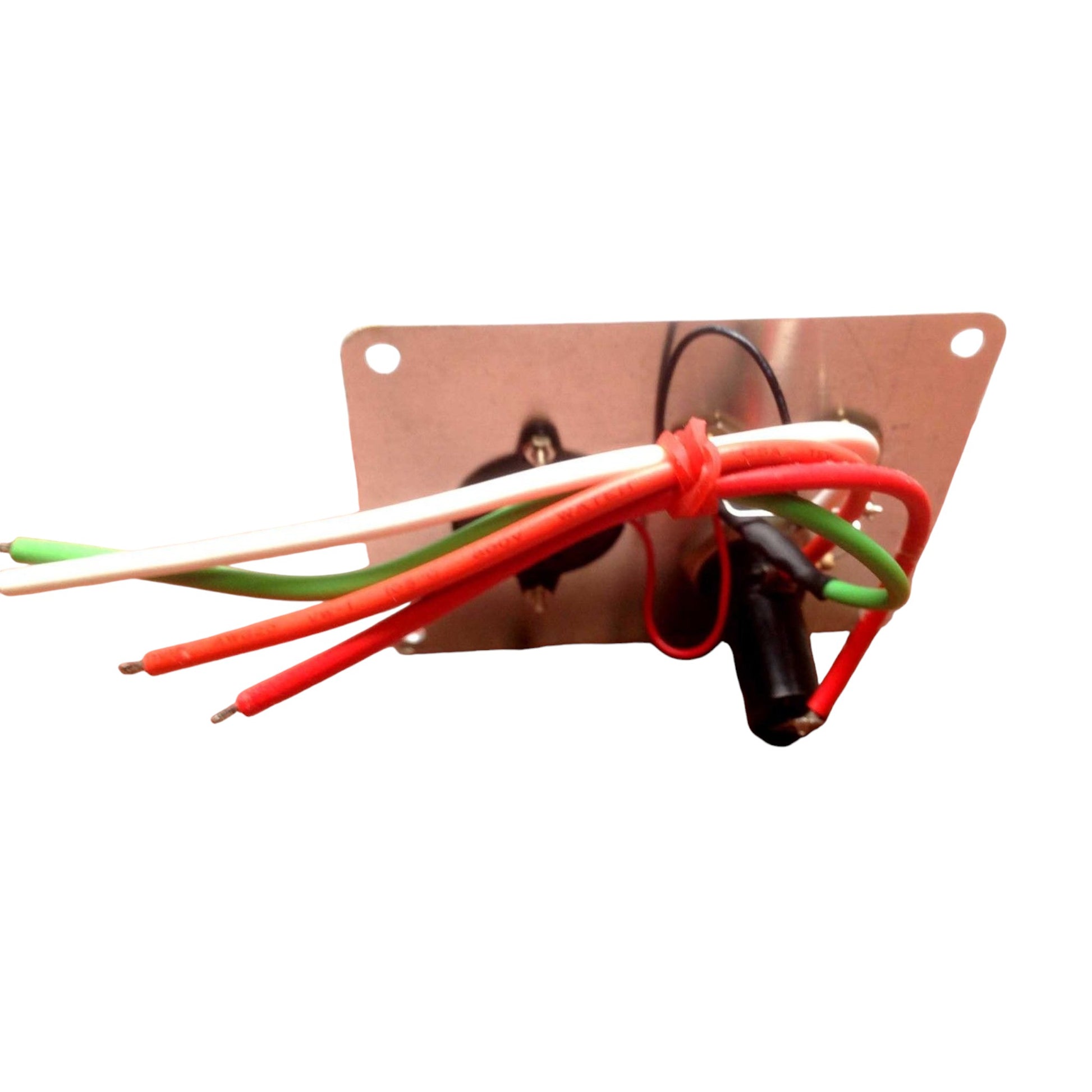

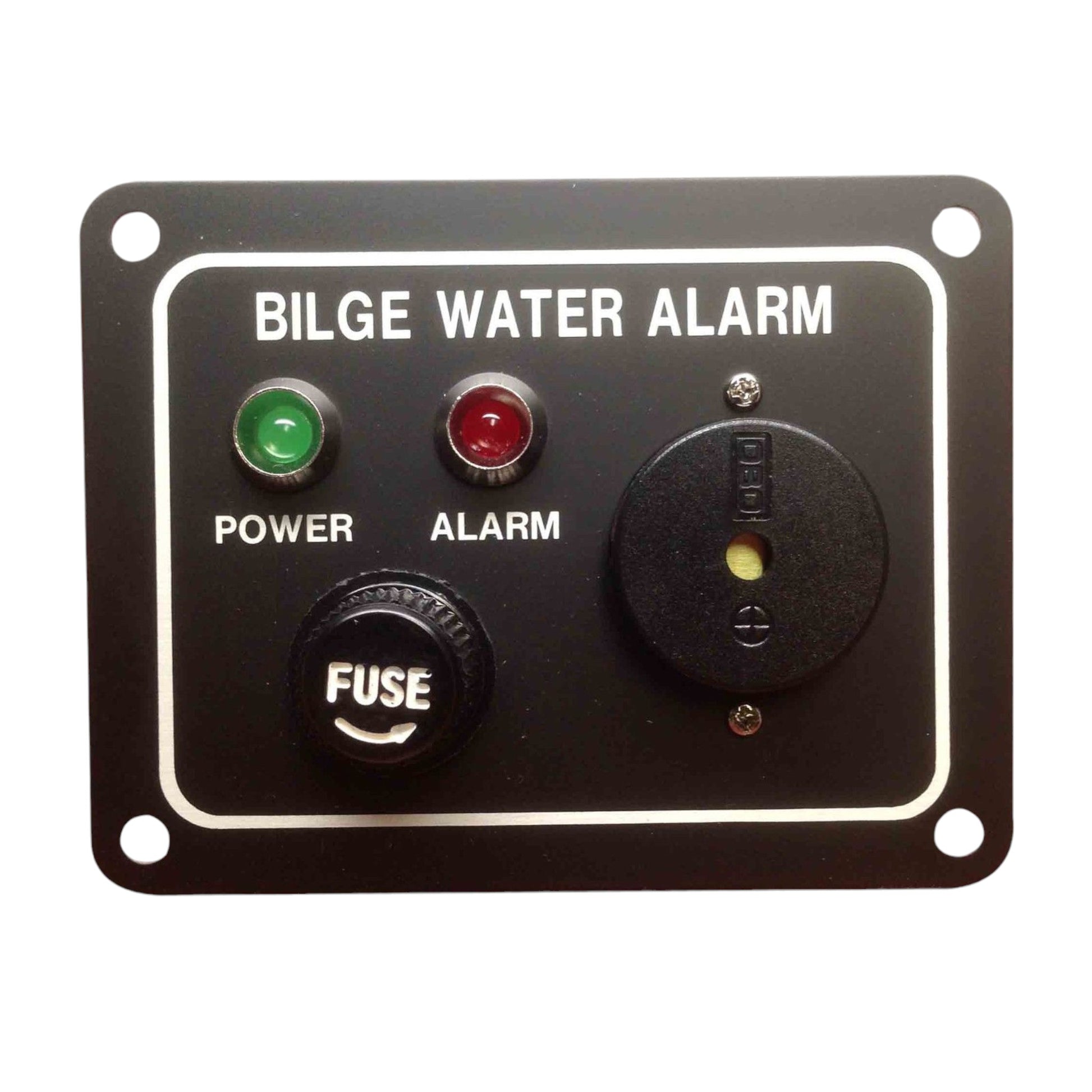

• This is a stamped anodized aluminum bilge pump switch.

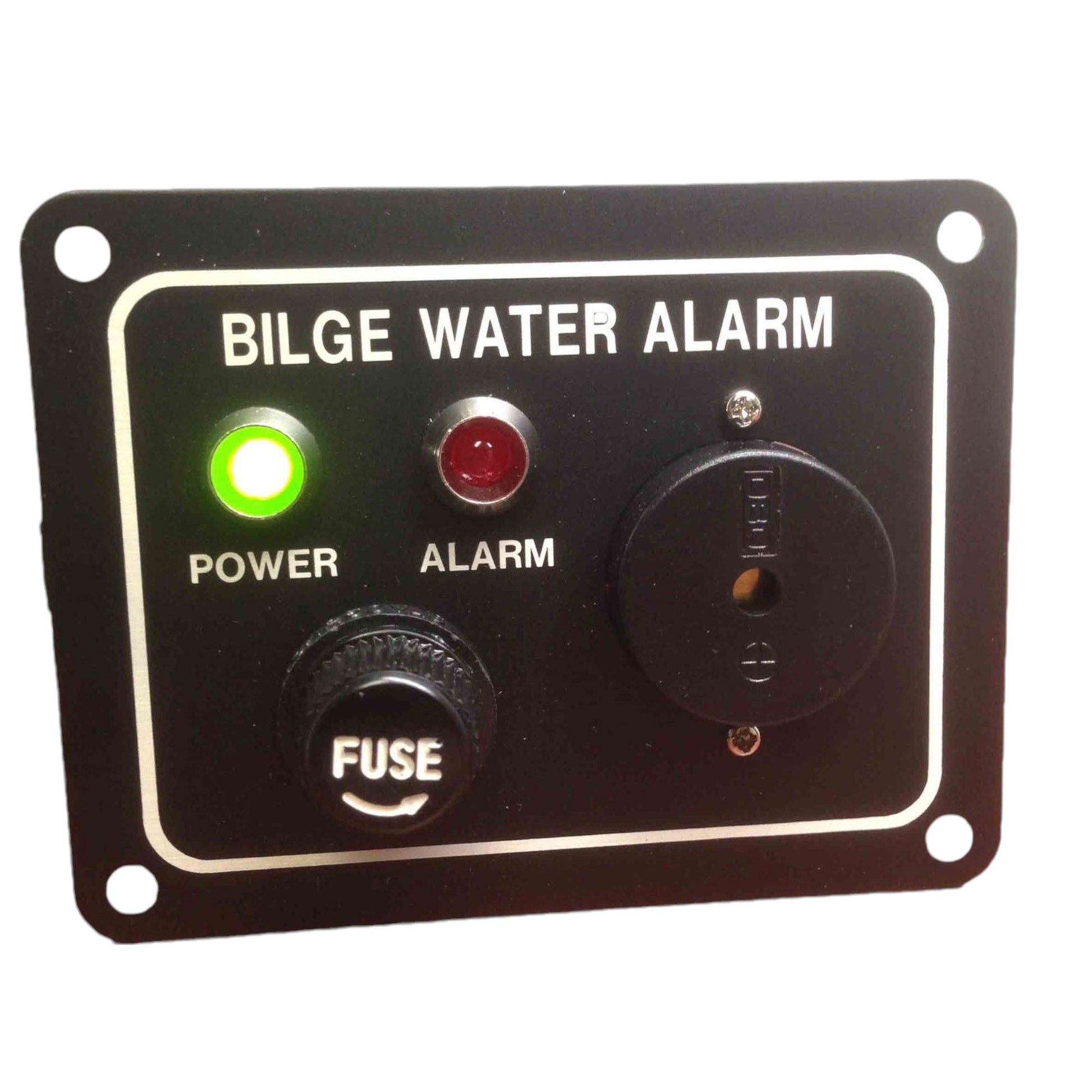

• Two means of alarm (visual and sound) are activated when water level in your bilge is beyond your Bilge pump float switch level.

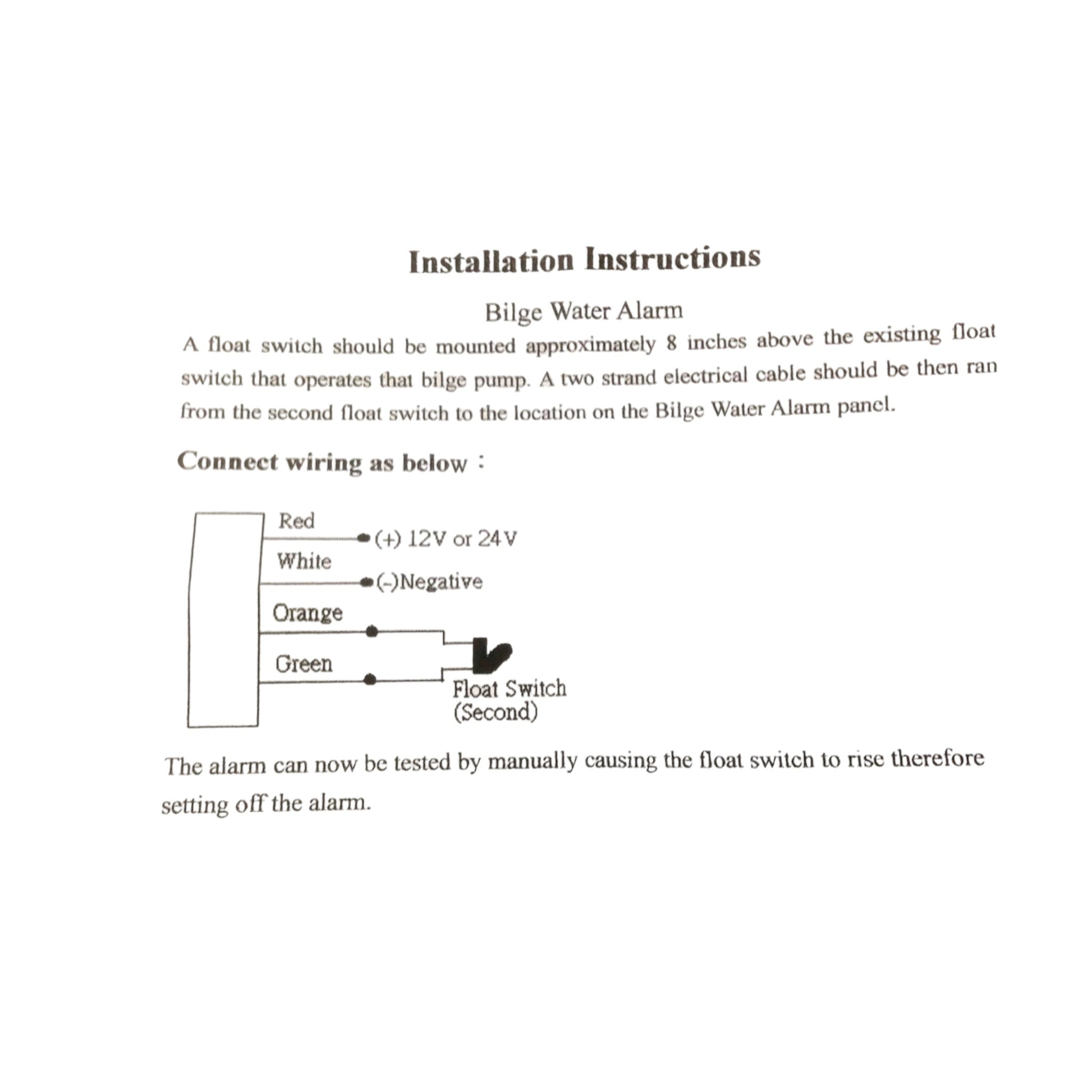

• Operation Manual: See picture attached to this listing with drawings and instructions. Measurements: 2.5" by 3.25"
• Item Number: P10297

Installation:

1. A float switch should be mounted approximately 8 inches above the existing float switch that operates that bilge pump.
2. A two strand electrical cable should be then ran from the second float switch to the location on the Bilge Water Alarm Panel.
