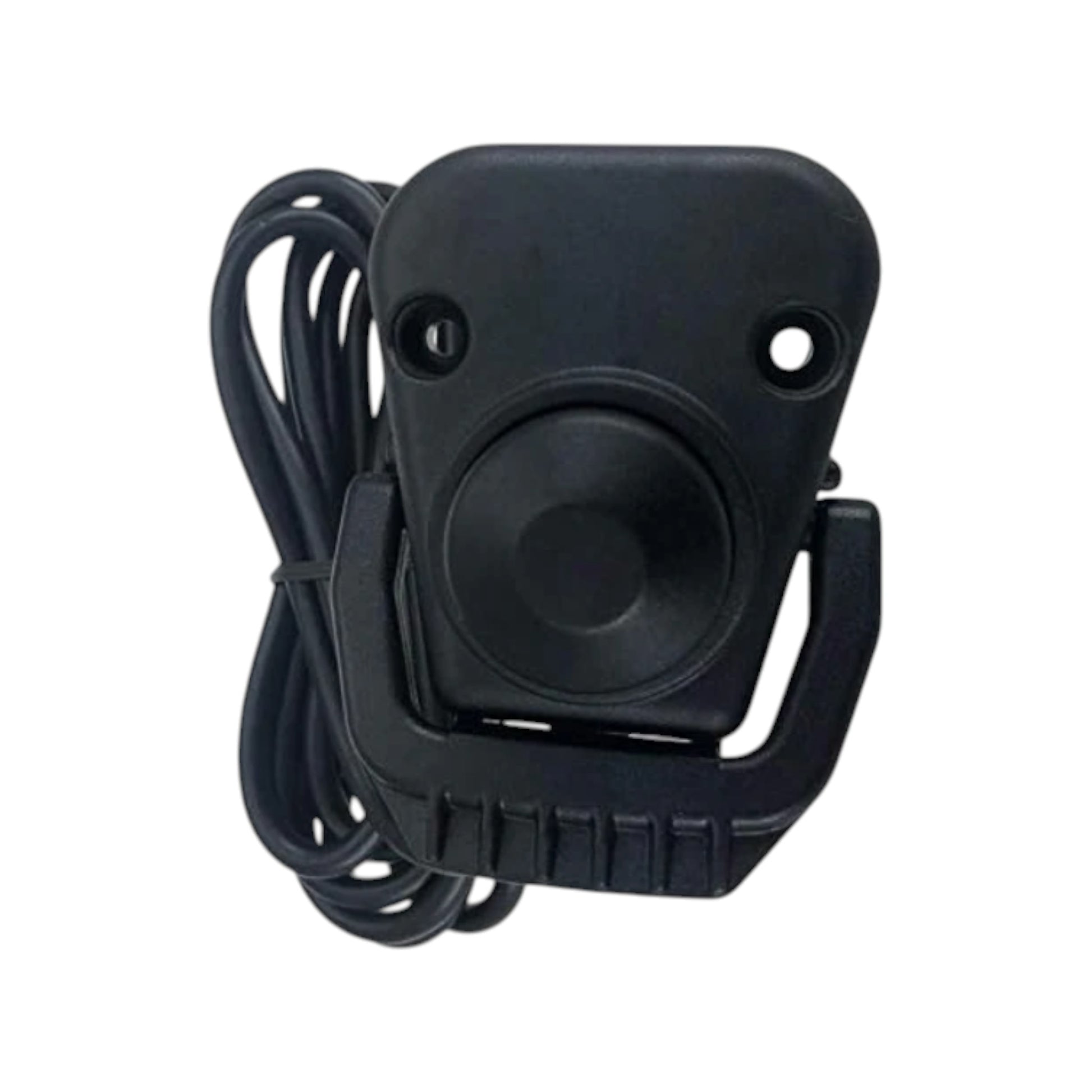

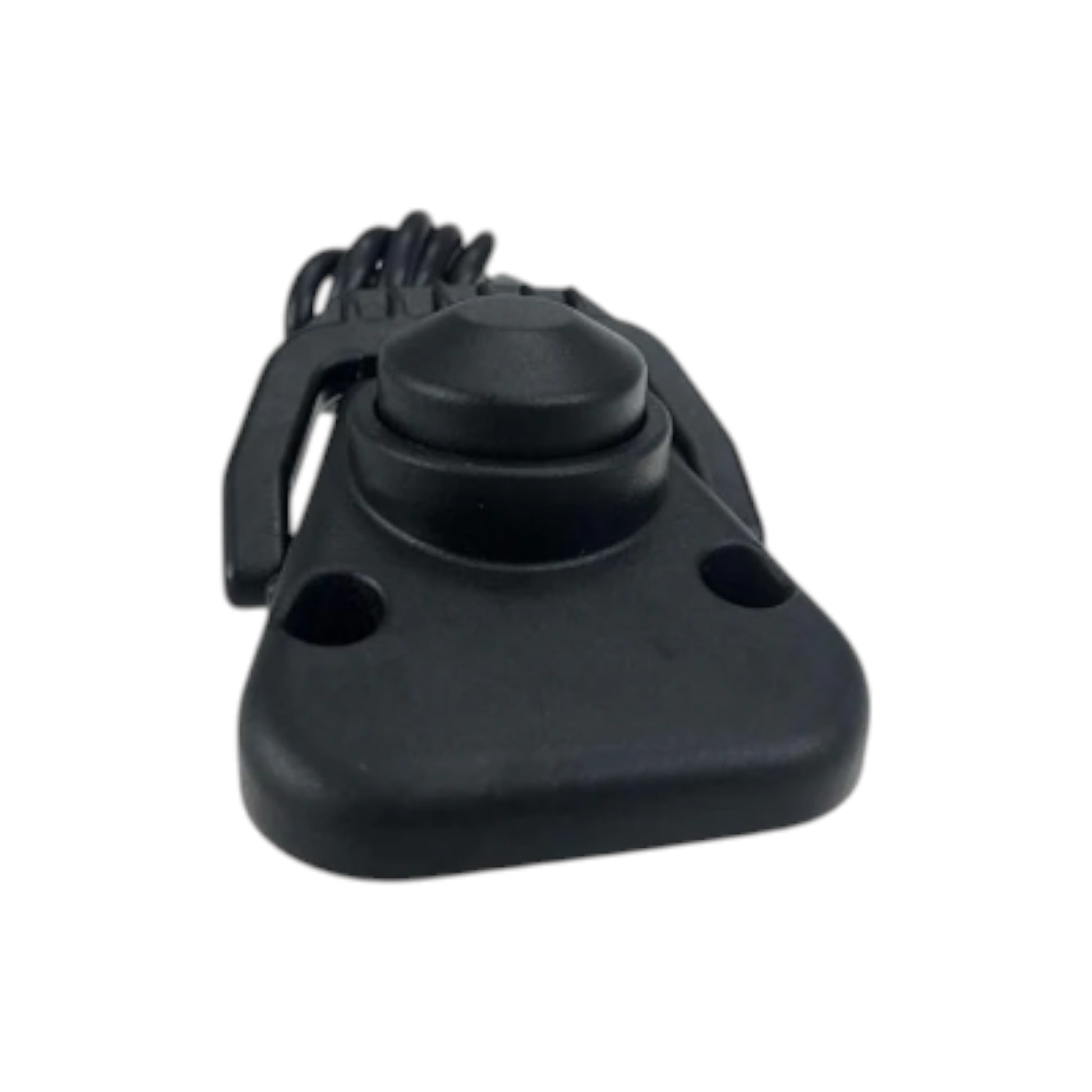

This is a Trolling Motor Control Switch that is made for 12V, 24V trolling motors. This product is made of Black PC and it comes with a push switch.

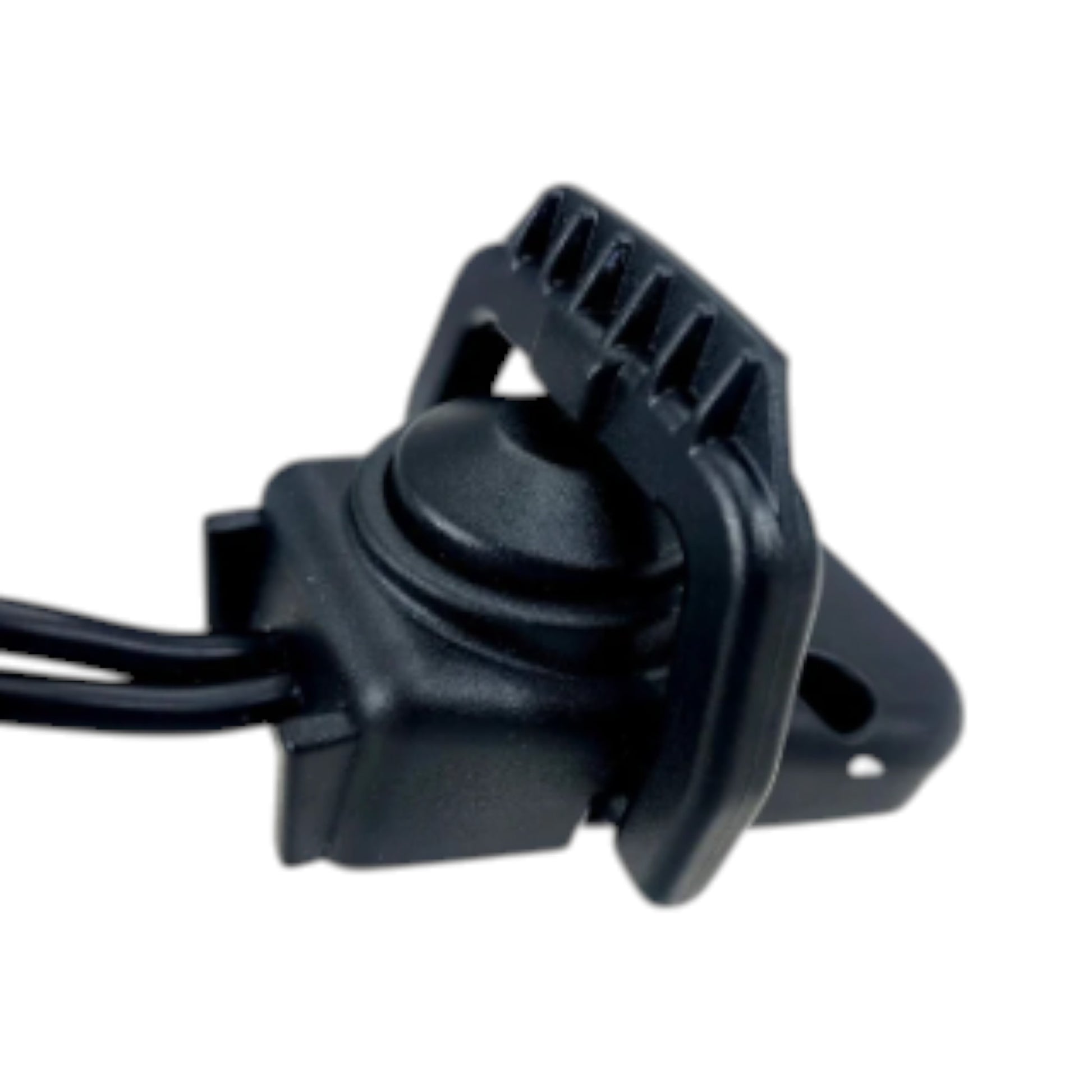

This trolling motor is rated to 50 Amps and has a weatherproof control system at IP:65. It also comes with a continuous "ON" lever.

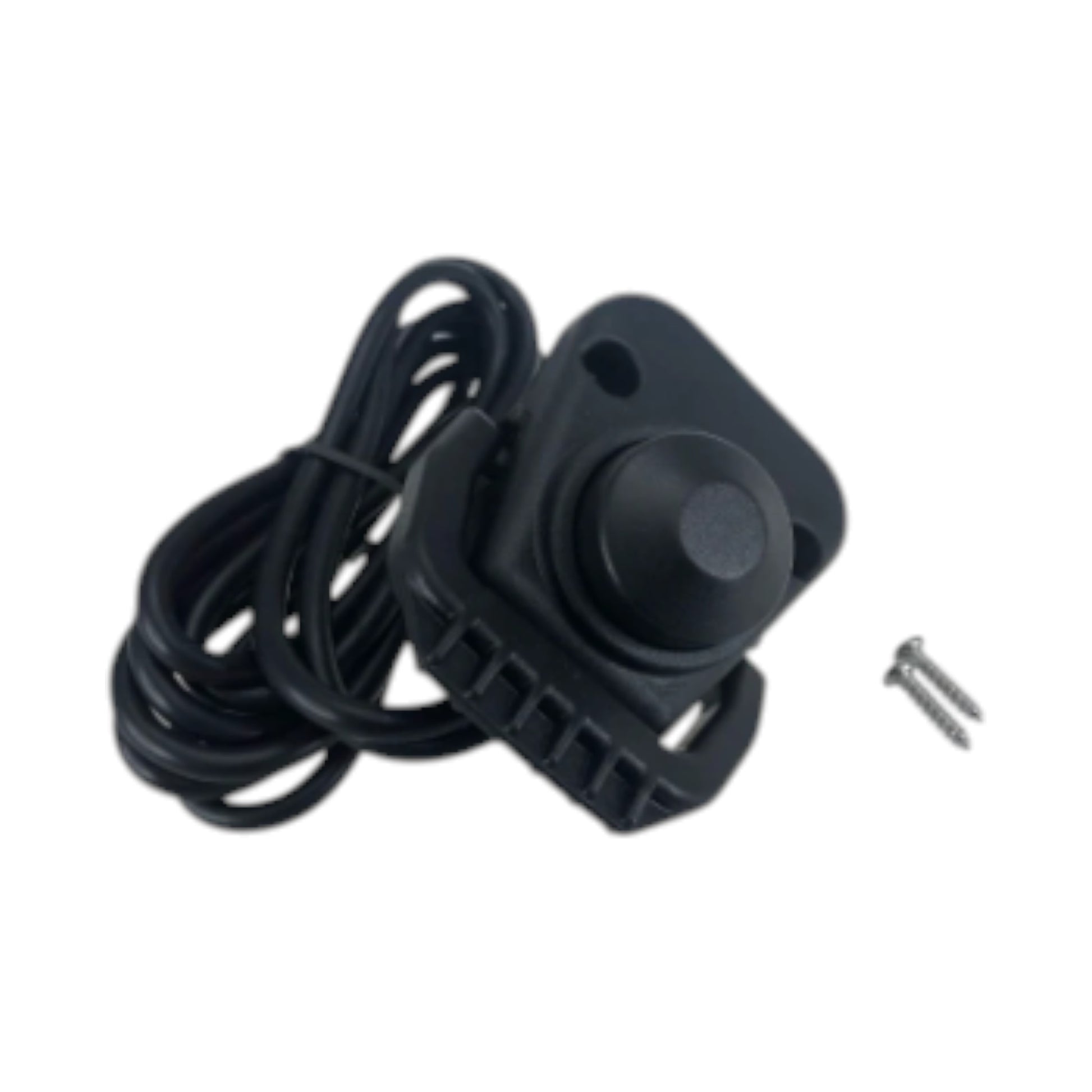

For installation, select a desired location for switch. Then, mount the switch to deck with fasteners included.
Connect the negative wire of motor to the negative of DC as shown in the diagram. Connect a wire of the switch to 12/24VDC positive. Connect another wire of the switch to the positive of the motor as shown in diagram. Test the operation after set-up.
Product Dimension (Switch): 3-1/4" x 2-1/2" x 1-1/4".
