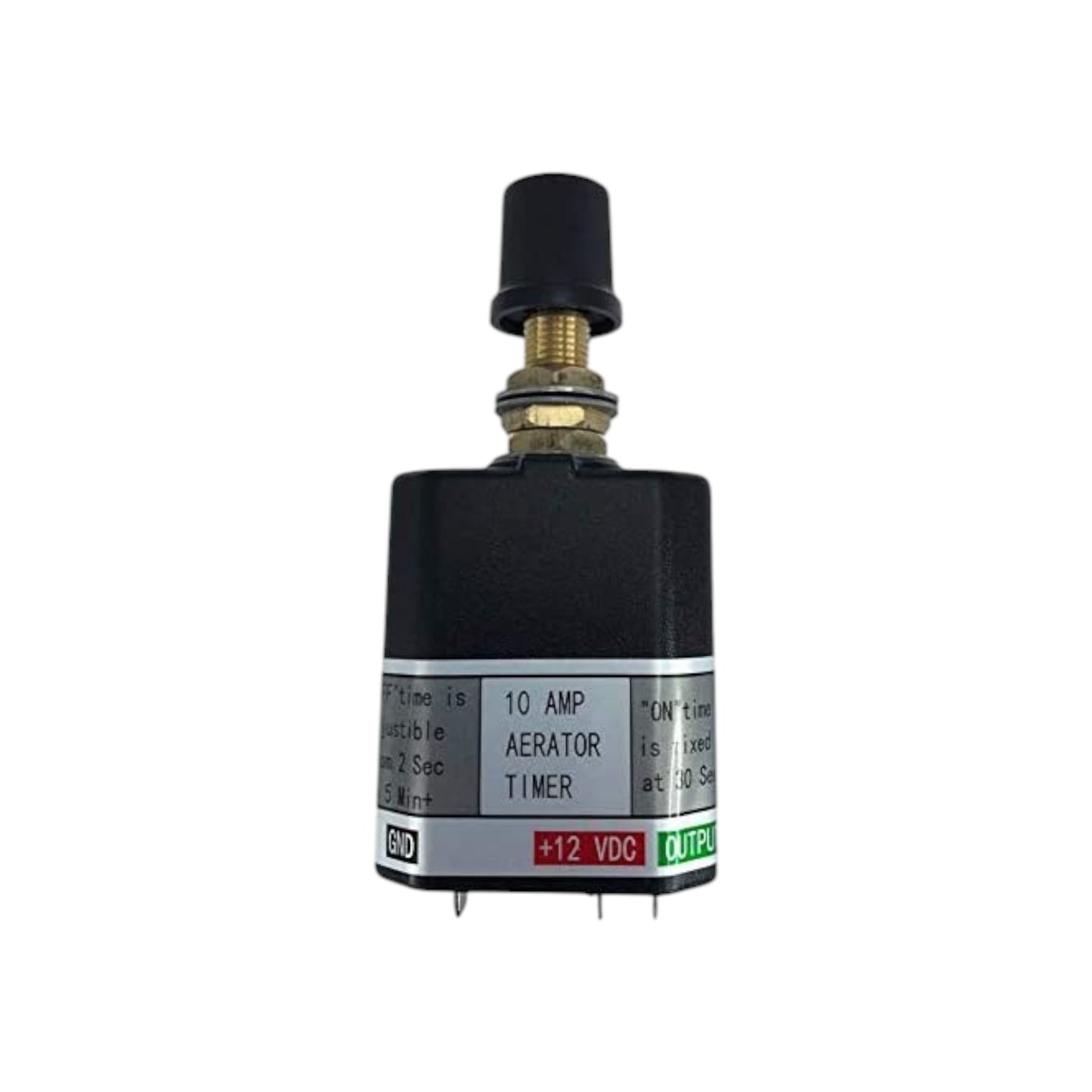

Pactrade Marine adjustable cycle time fish livewell timer switch aerator pump always found on boats and used as a livewell.
This is marine grade standard for boat use.

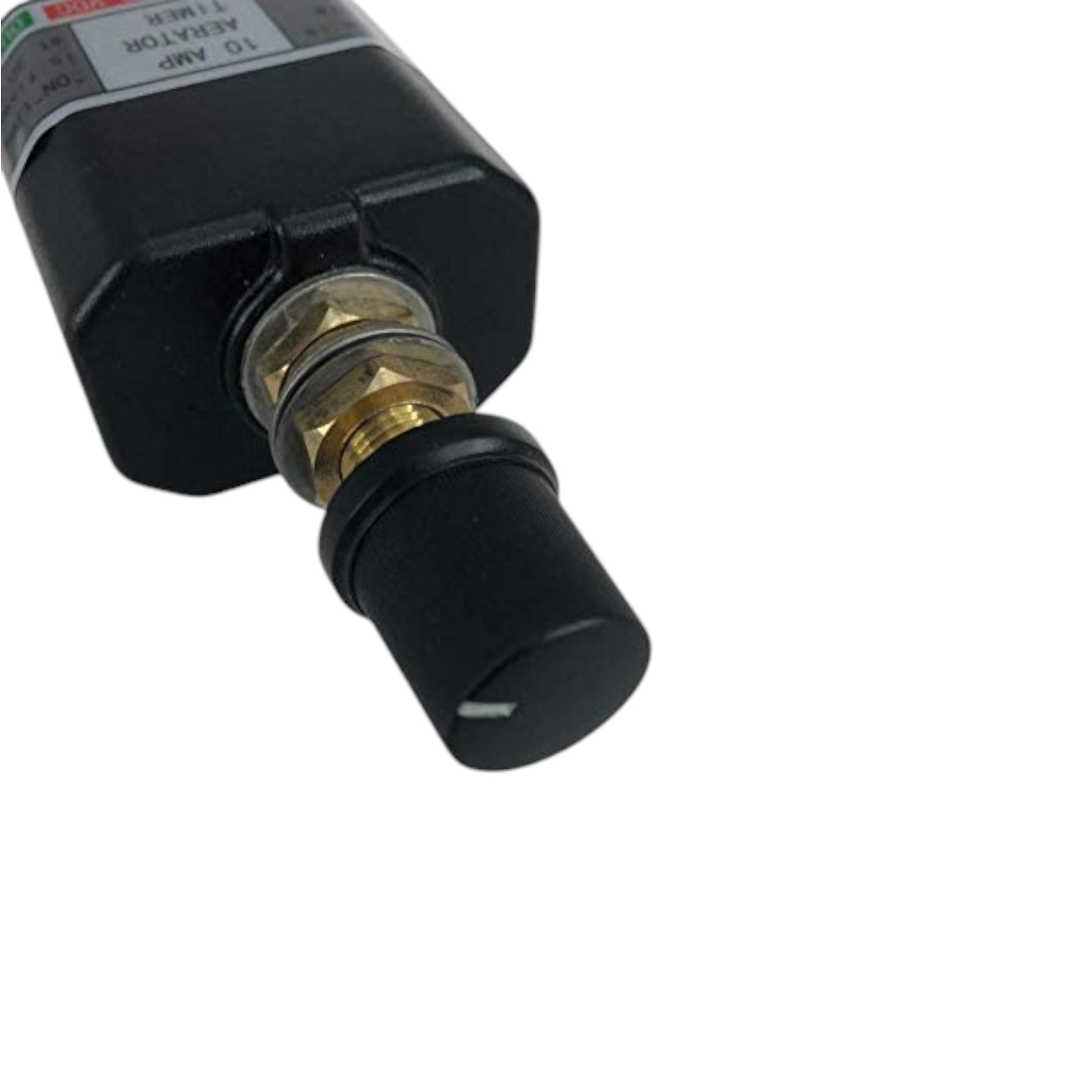

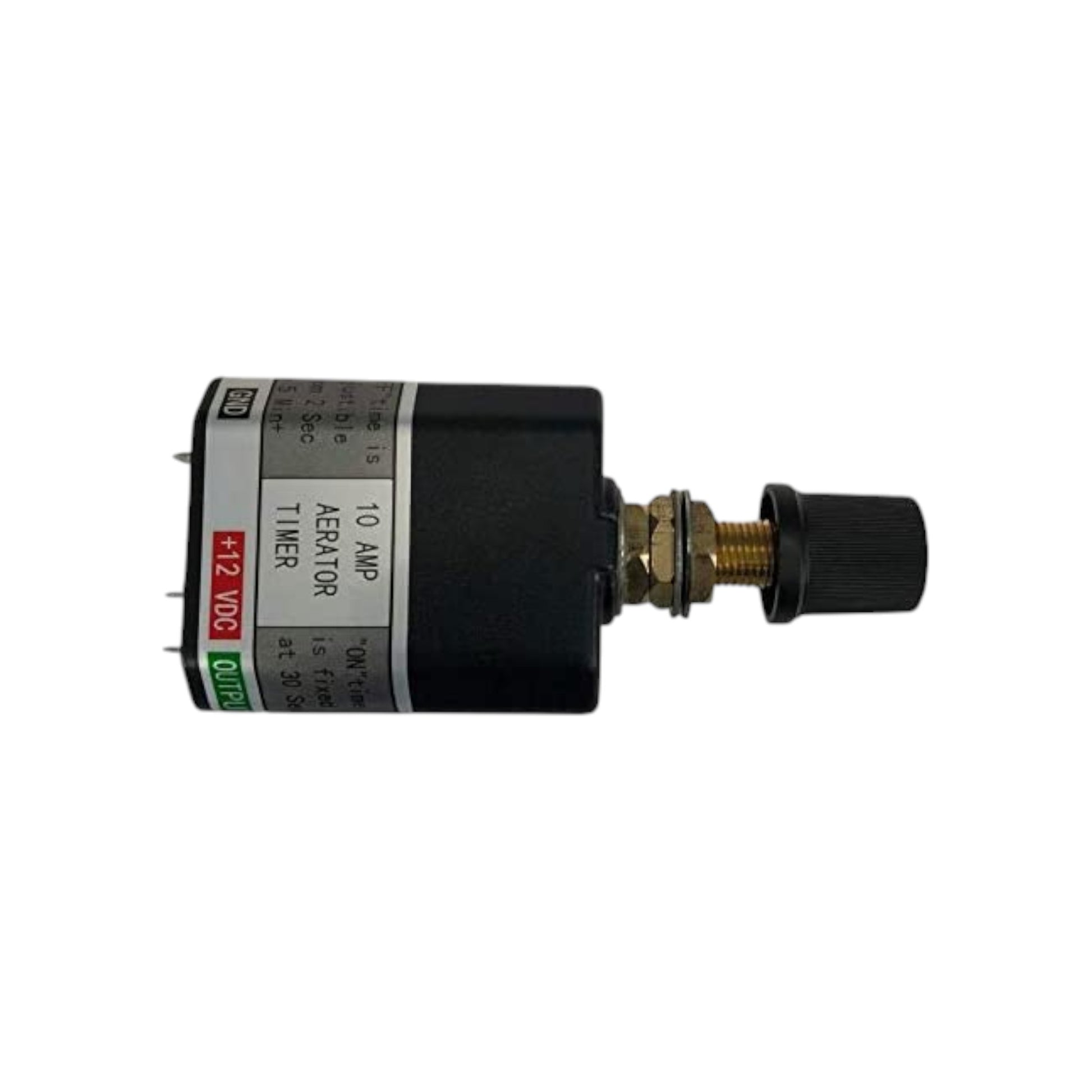

This variable livewell timer has a traditional knob, and mounts easily with a 3/8” drill bit in dash panels, Threaded Brass shafts fits panels up to 1/2 inch Max.
This livewell timer knob contains the off switch.

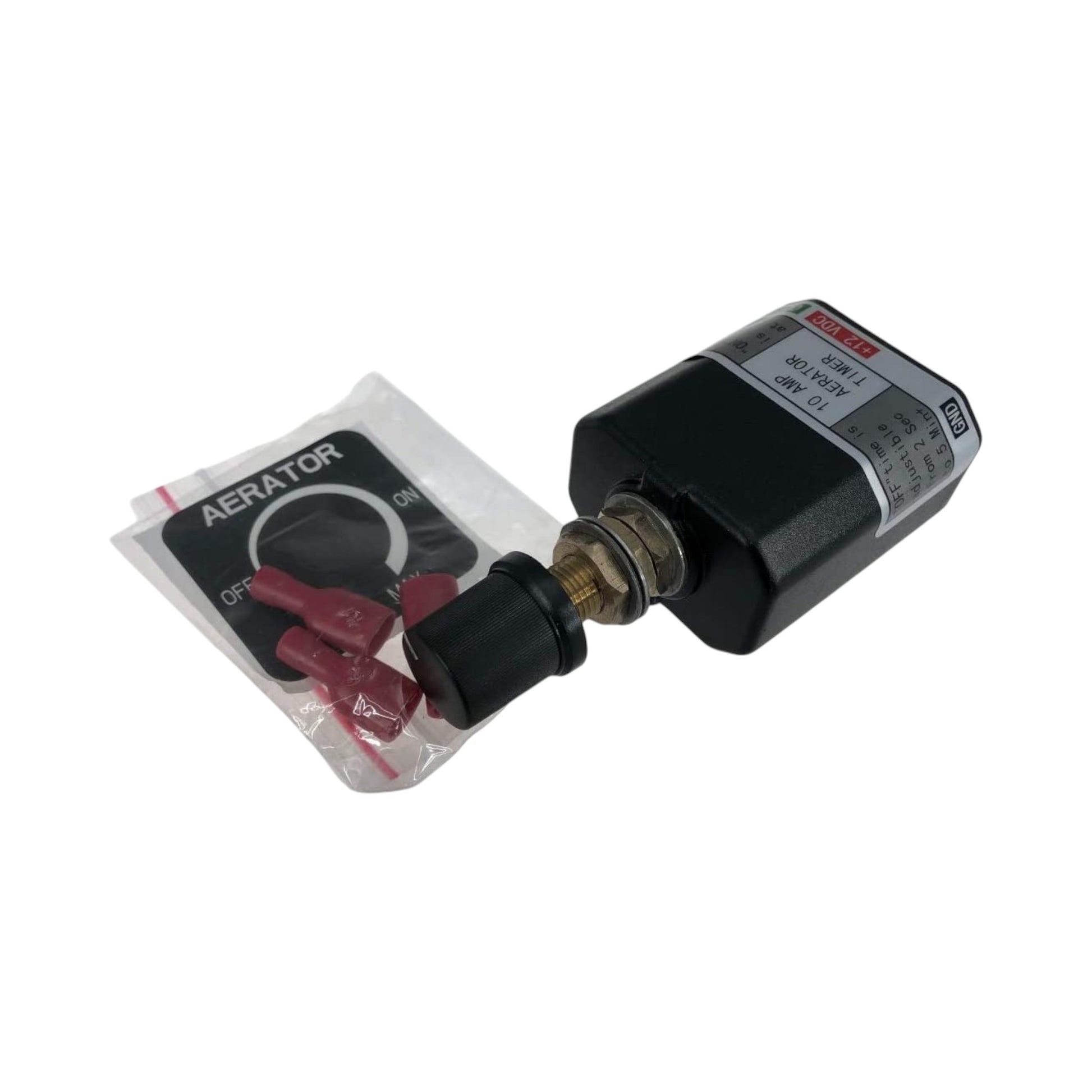

It comes with a black sticker with graduated incremental design that that shows were OFF is, You will able to feel the click when it goes into the OFF position.

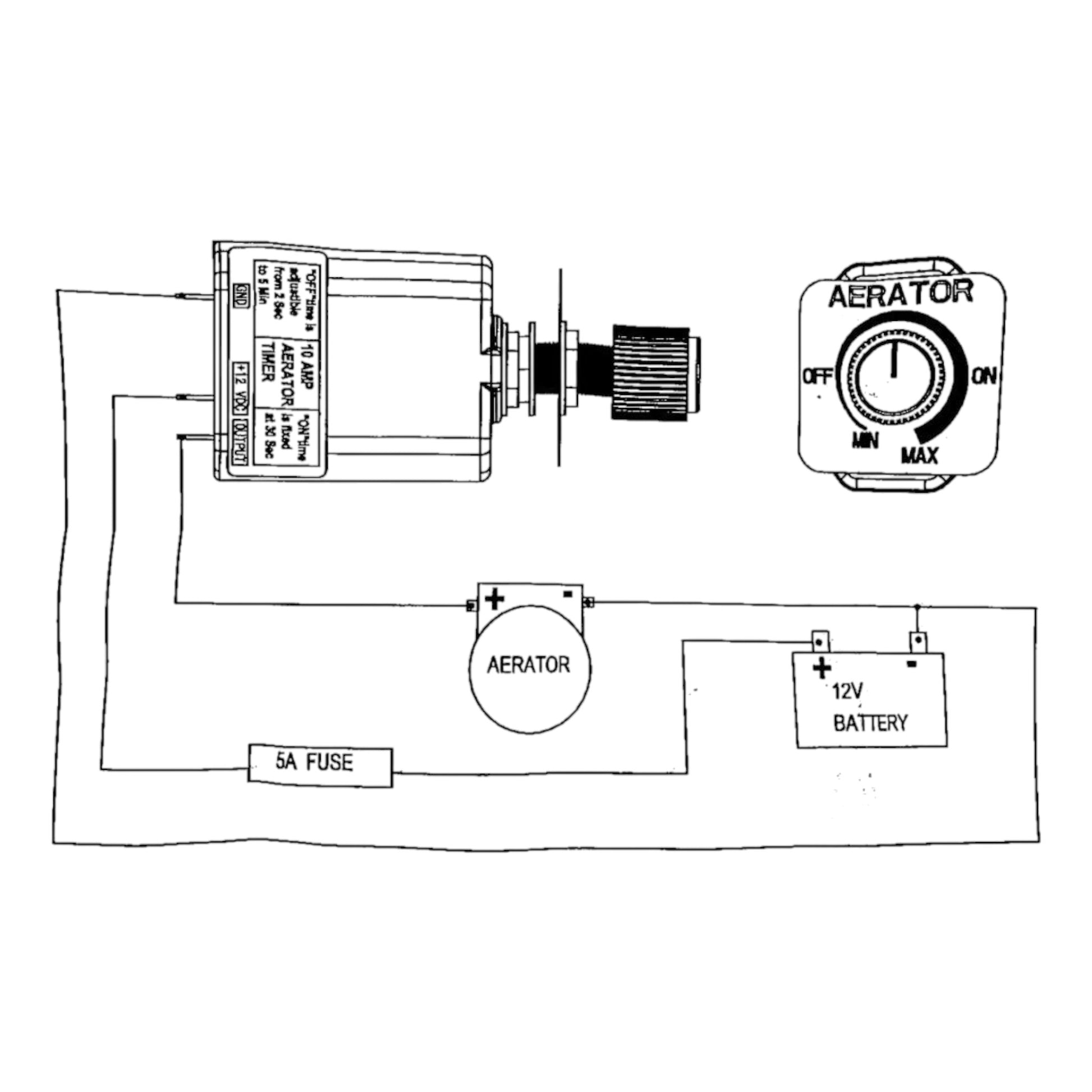

(Simple wiring diagram included for installation ) This aerator timer’s “ON” cycle is 30 seconds, and the “OFF” cycles varies from 2 seconds to approximately 5 minutes by adjusting the knob.
So if you turn it all the way up, the livewell pump will run constantly.

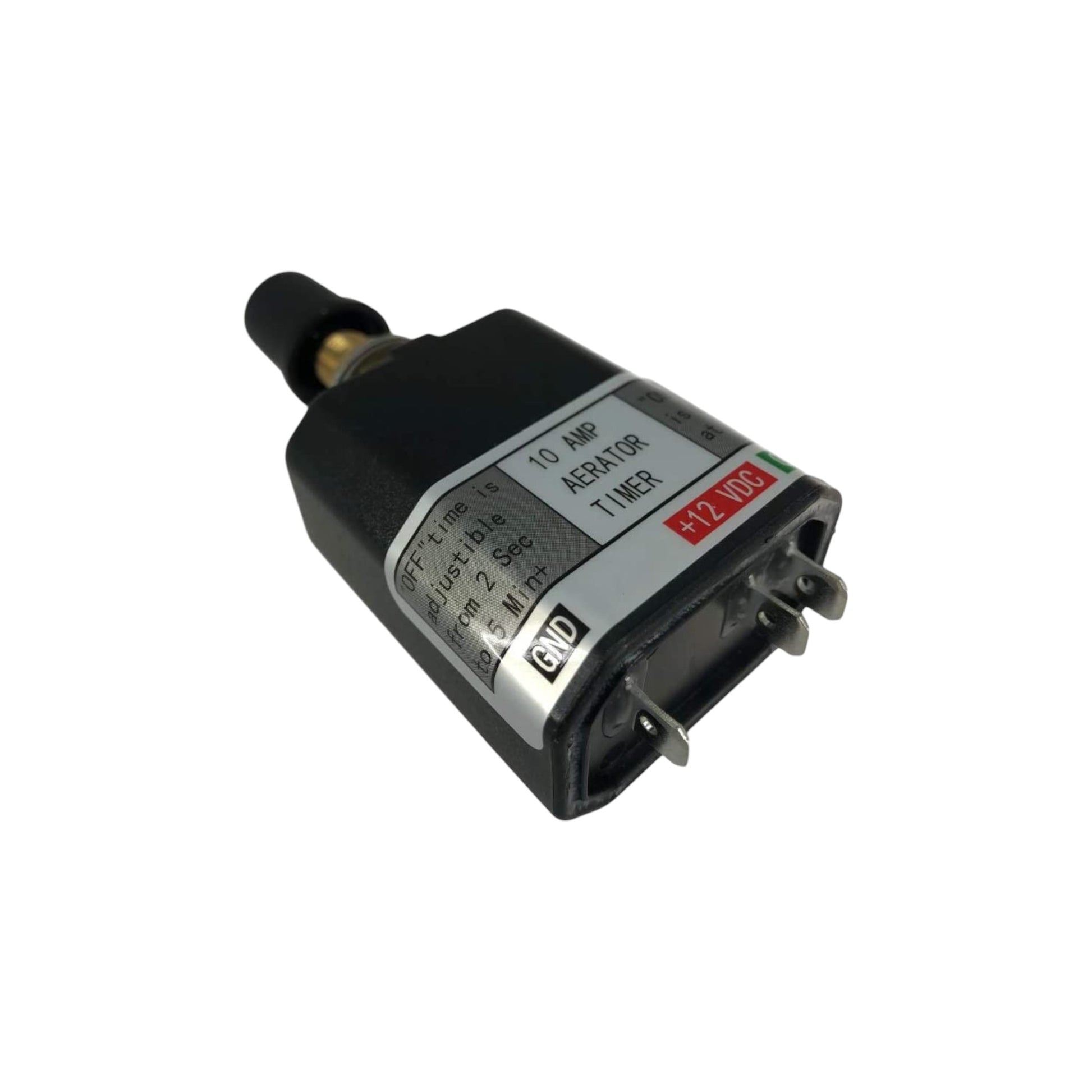

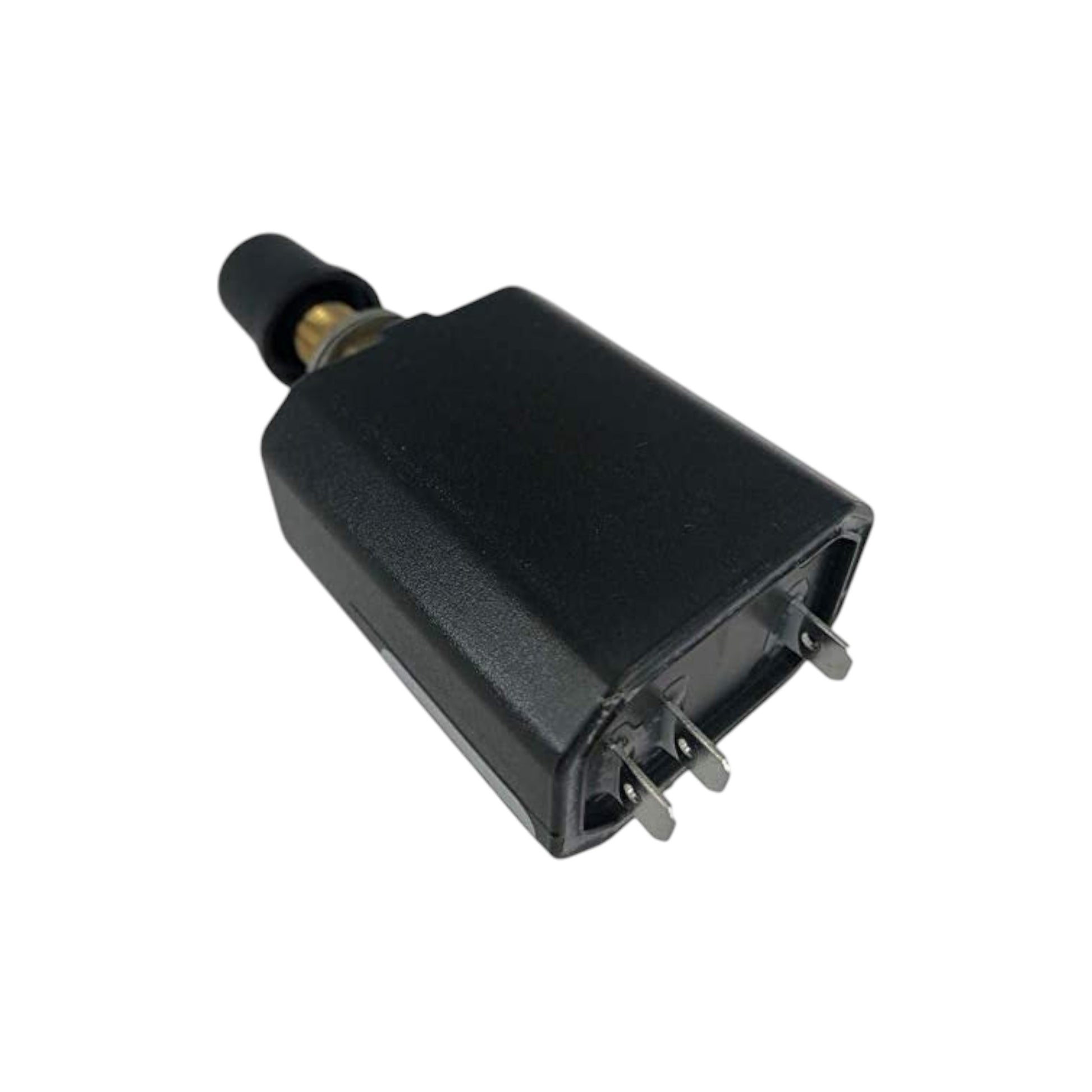

This aerator timer knob has 0.250” Male Quick Connect terminals (a positive, and output and a negative), so all you’ll need to install is a 3/8” drill bit and three of these Female Quick Connect Terminals.
Just drill one 7/16 inch hole (adjust the spacing nuts to install), Requires 4 inch clearance behind panel.
Add a positive from your fuse or breaker, negative from your main bus bar, and output to your favorite livewell or aerator pump.
Our aerator timer knob will drive any 12V load under 10Amps.
This is a Pactrade Marine variable/Adjustable/Selectable Cycle livewell timer knob.
